JAC JS4

The JS4 is JAC’s new mid-sized SUV, the face of this SUV is futuristic. Break the parameters with the new JS4. Be amazed by a new avant-garde design, high technology and superior equipment. The new JS4 comes with a whole new futuristic design and equipped with the latest technologies to guarantee your comfort and wellness.
DESIGN
  • ABOUT
  • EXTERIOR
  • INTERIOR
  • GALLERY

Engineering & design in synergy

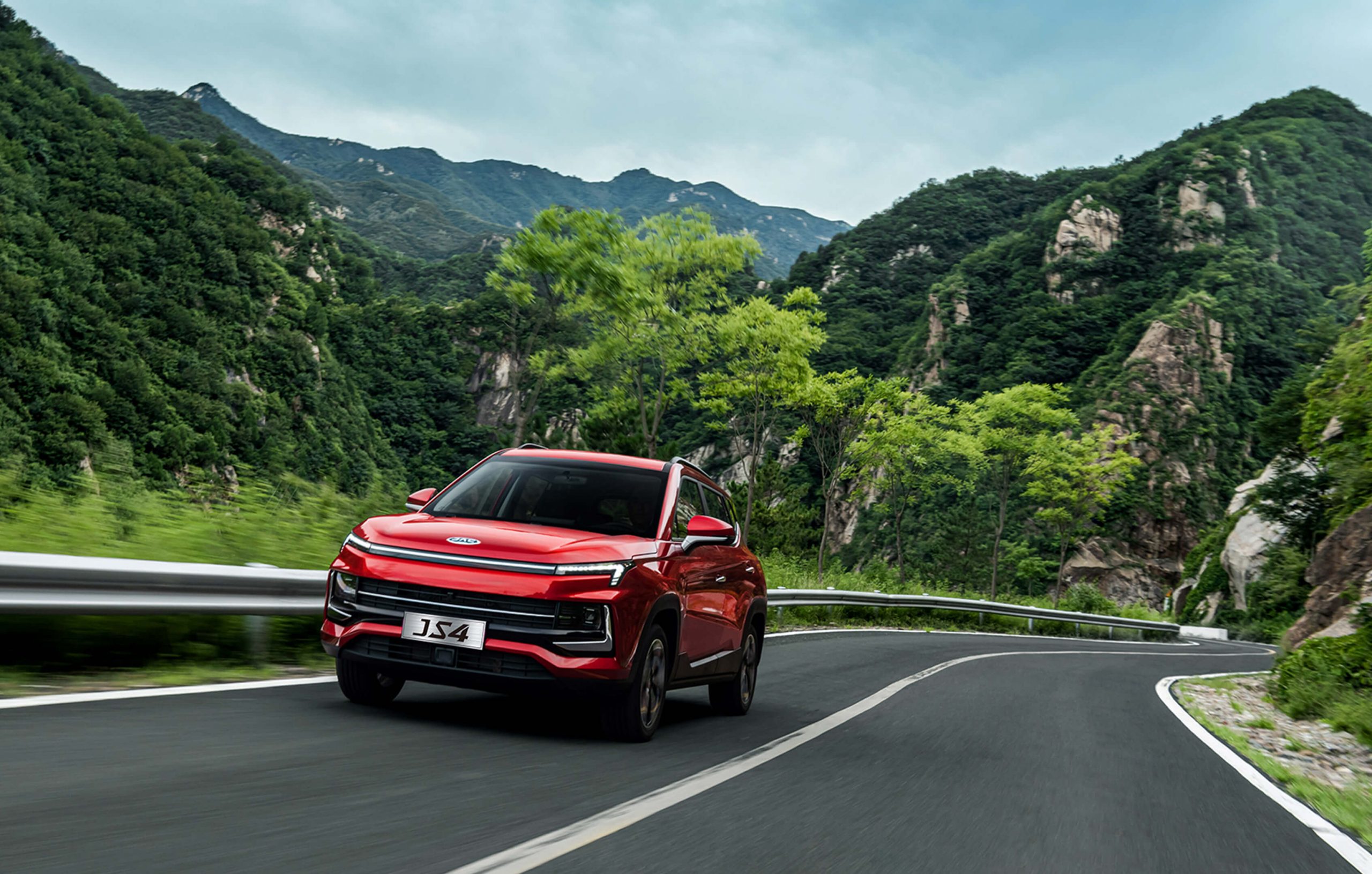

Perfect Drive

Because you like to move at your own pace, do it on board the new JAC JS4, which will always accompany you with a prominent design and with all the innovations that will maximize the feeling of comfort and driving.

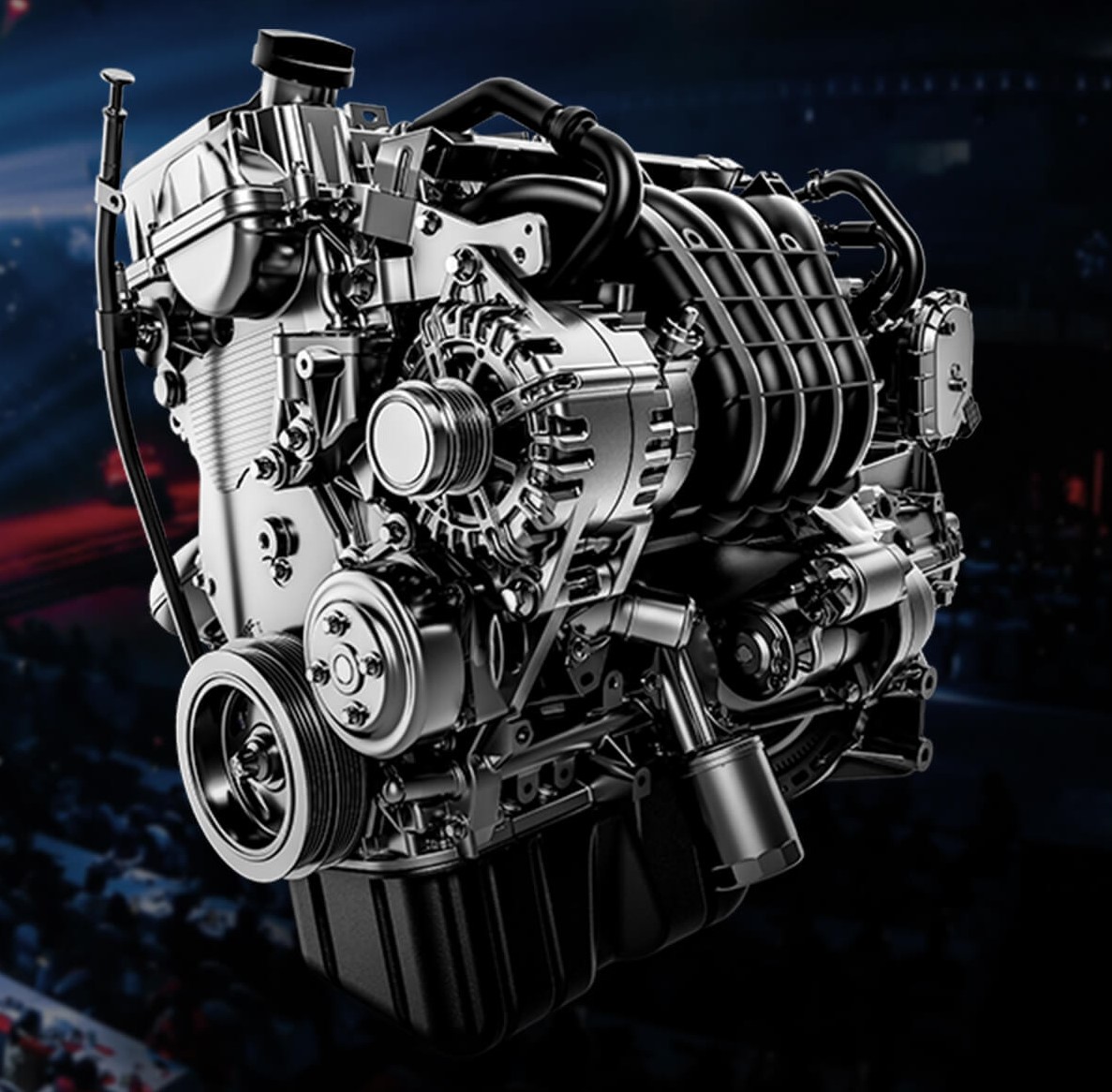

Engine& Transmission

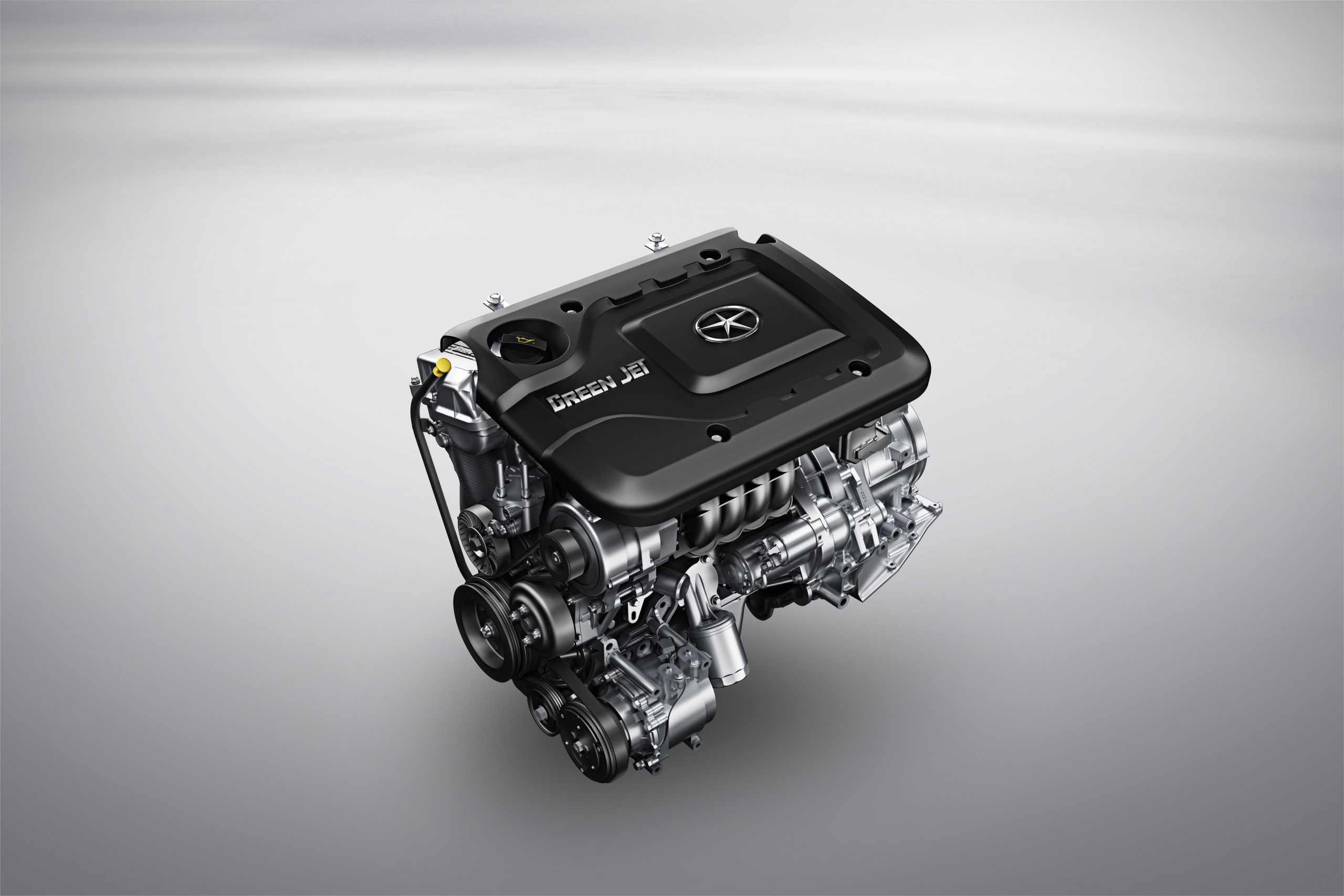

JS4 comes with 1.5 turbo engine with 147 HP of power & 210 Nm of torque, which go with a 6-speed CVT gearbox.

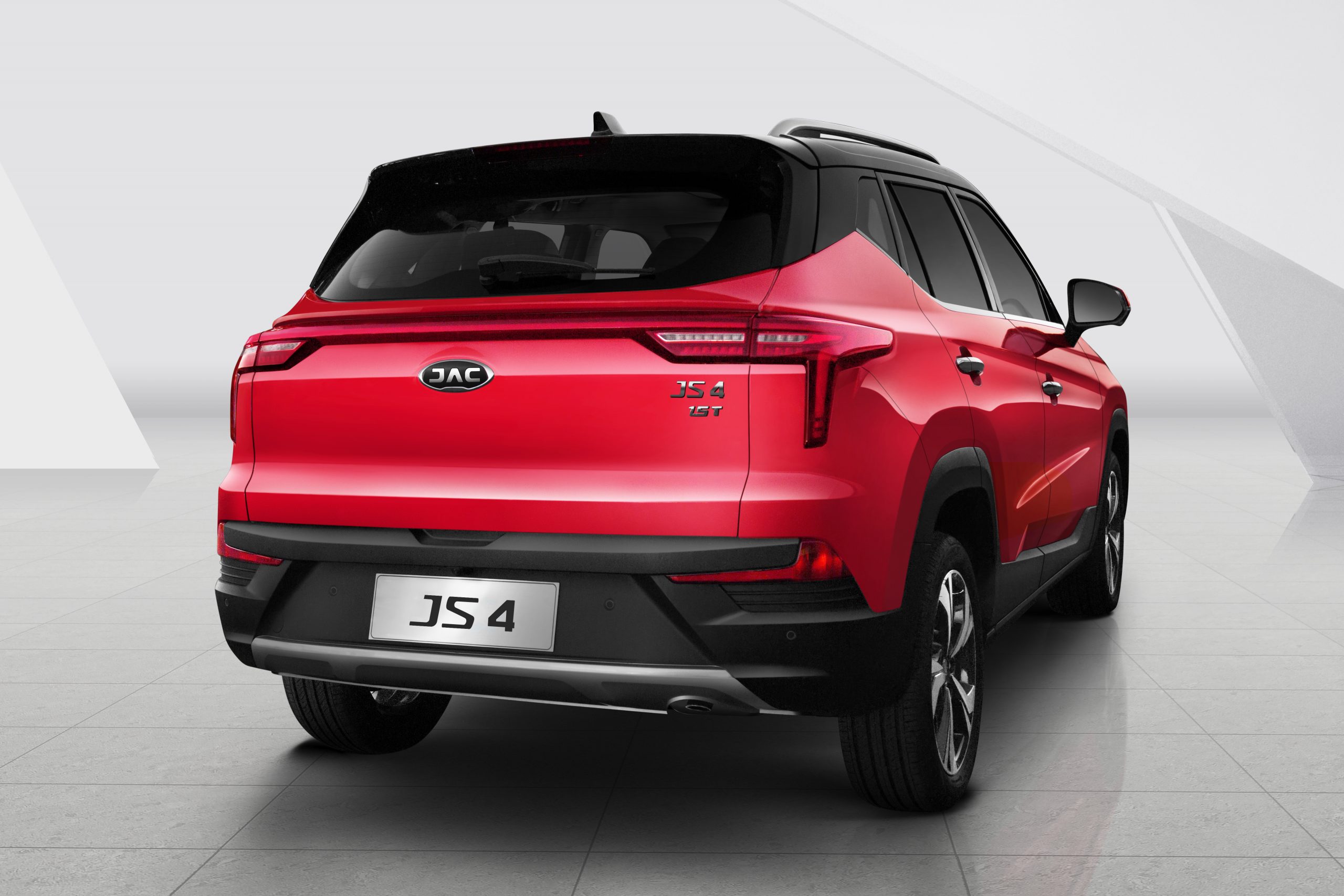

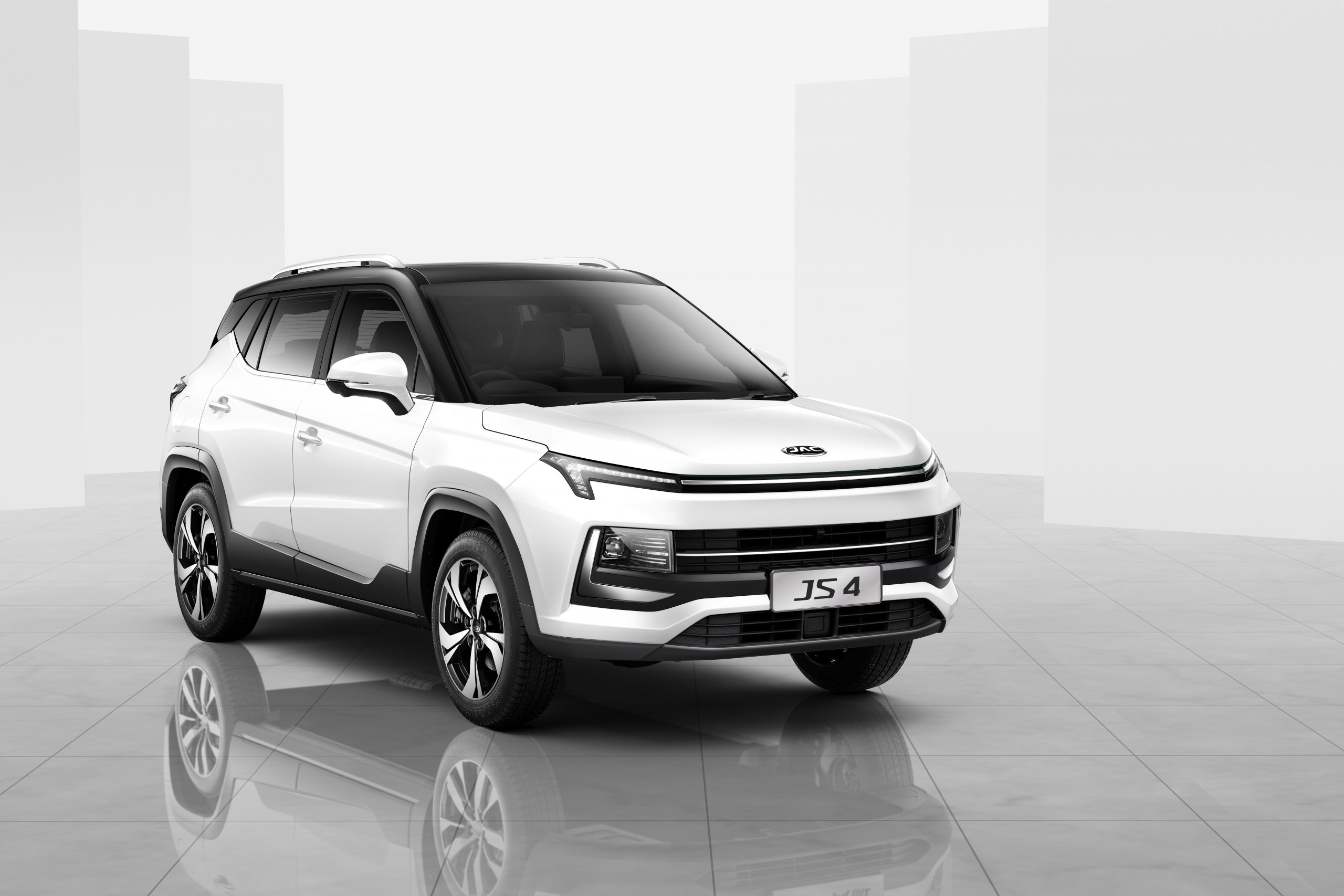

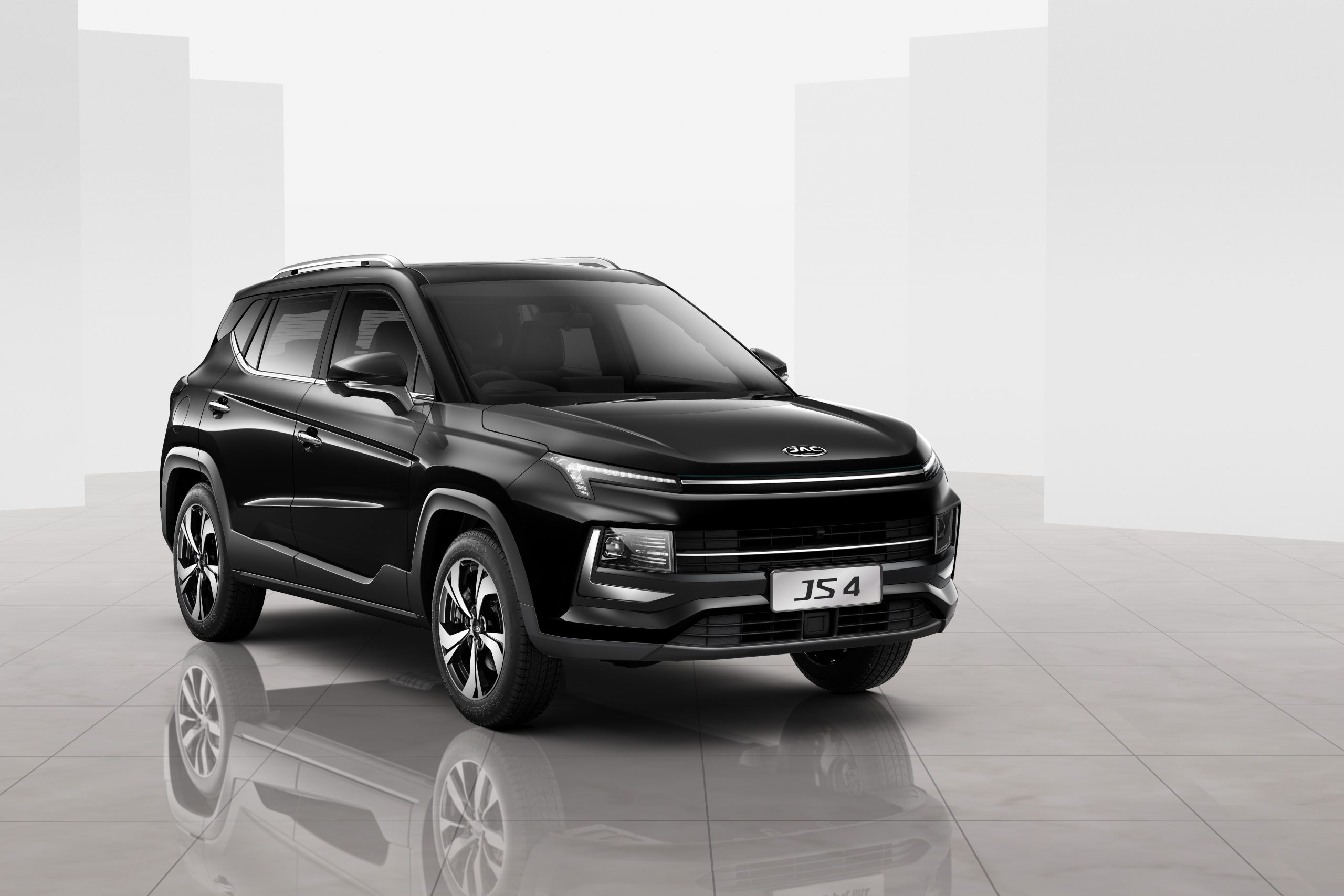

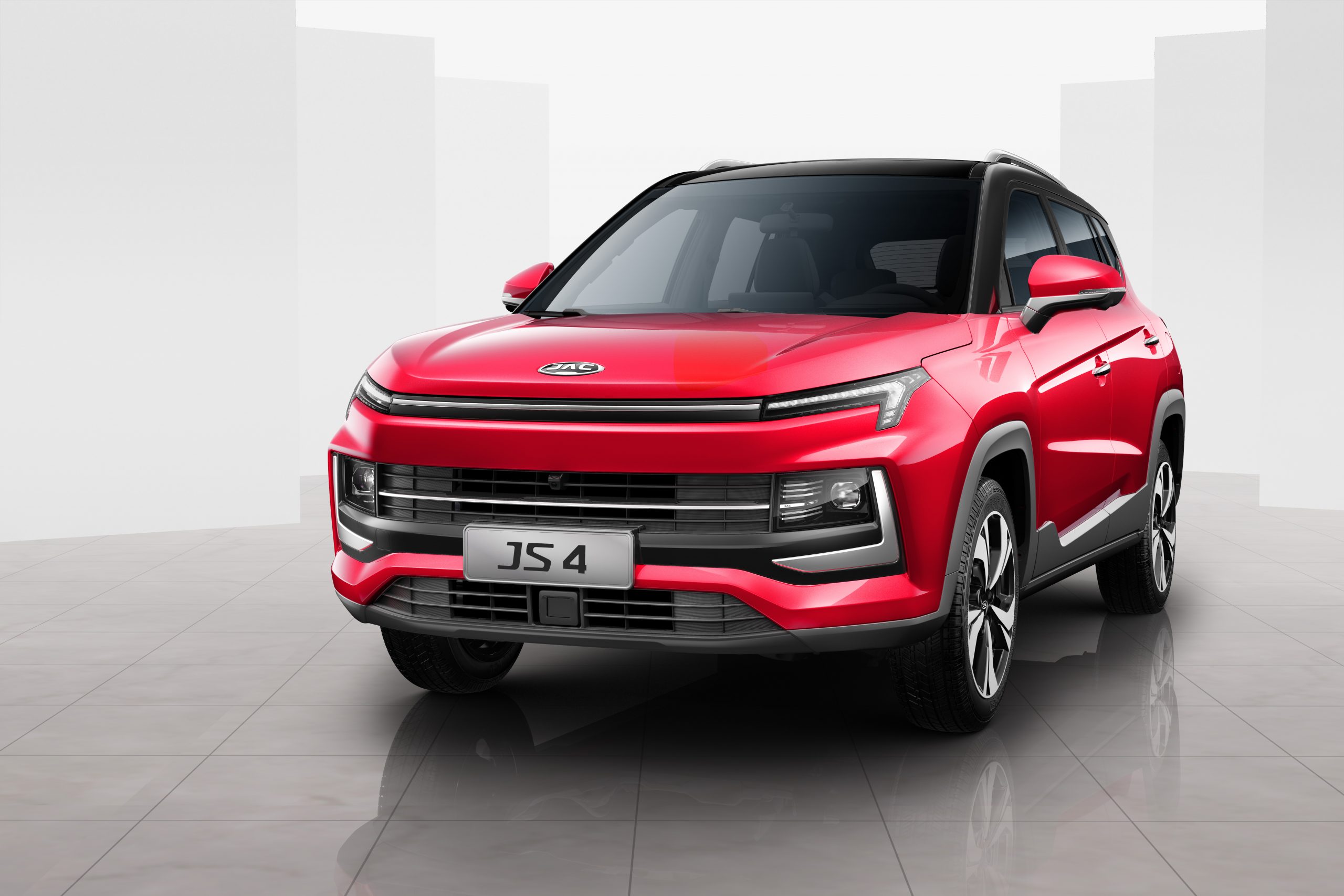

Excellent Exterior

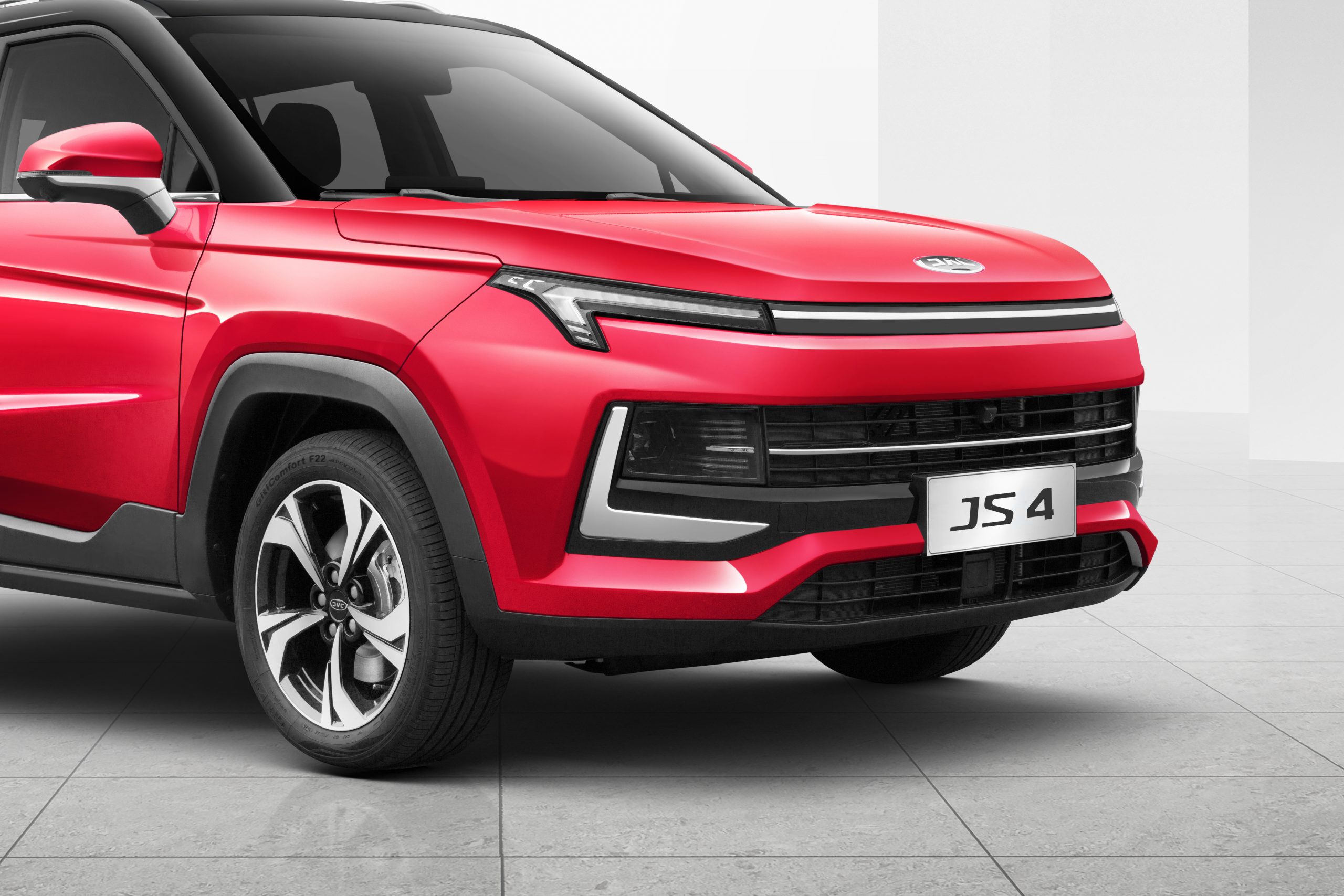

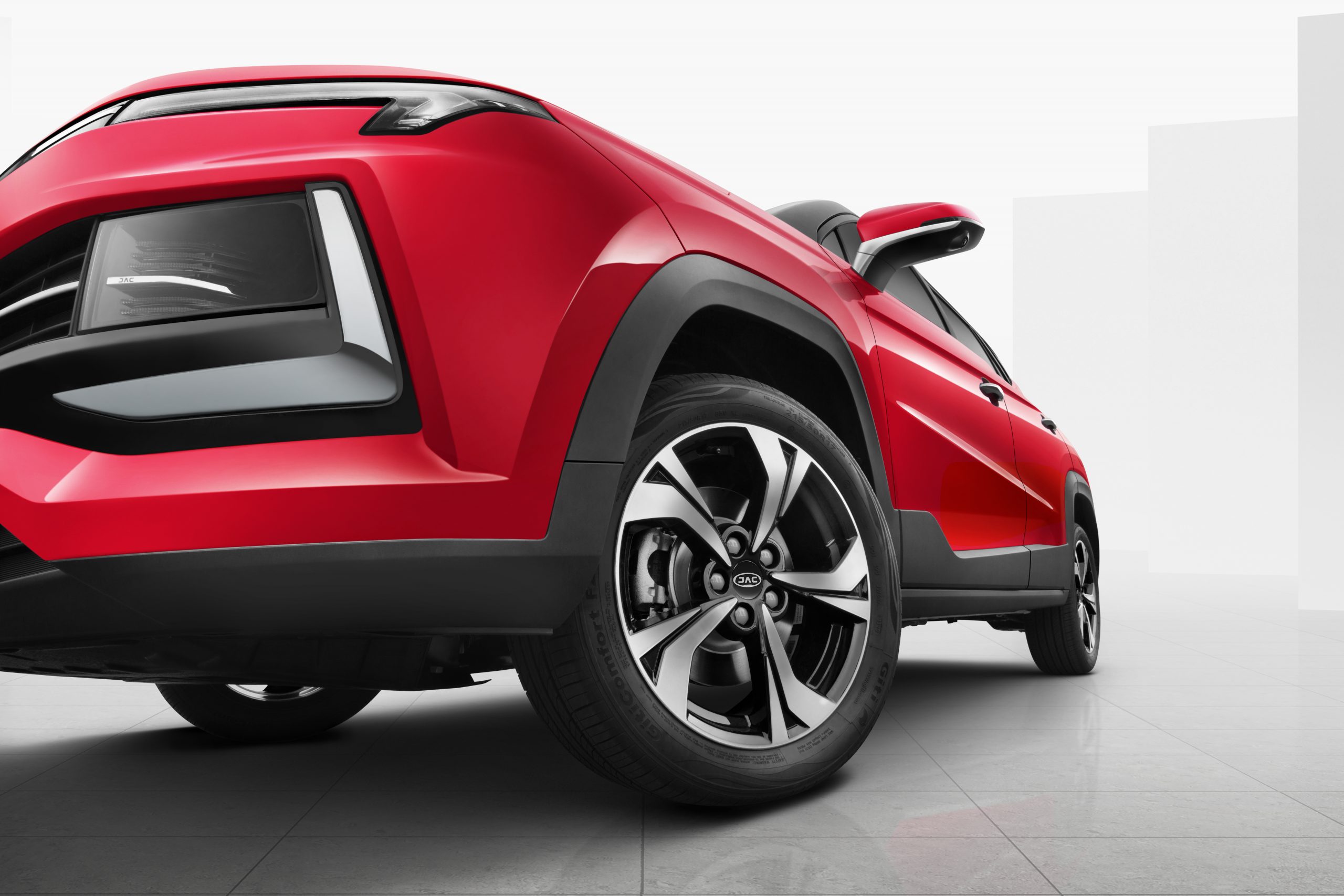

JS4 stands out for its modern and avant-garde look, and a Inverted-7 shaped LED highlights parallel to the grille, distinct and structured. Additionally, it houses 17” alloy rims.

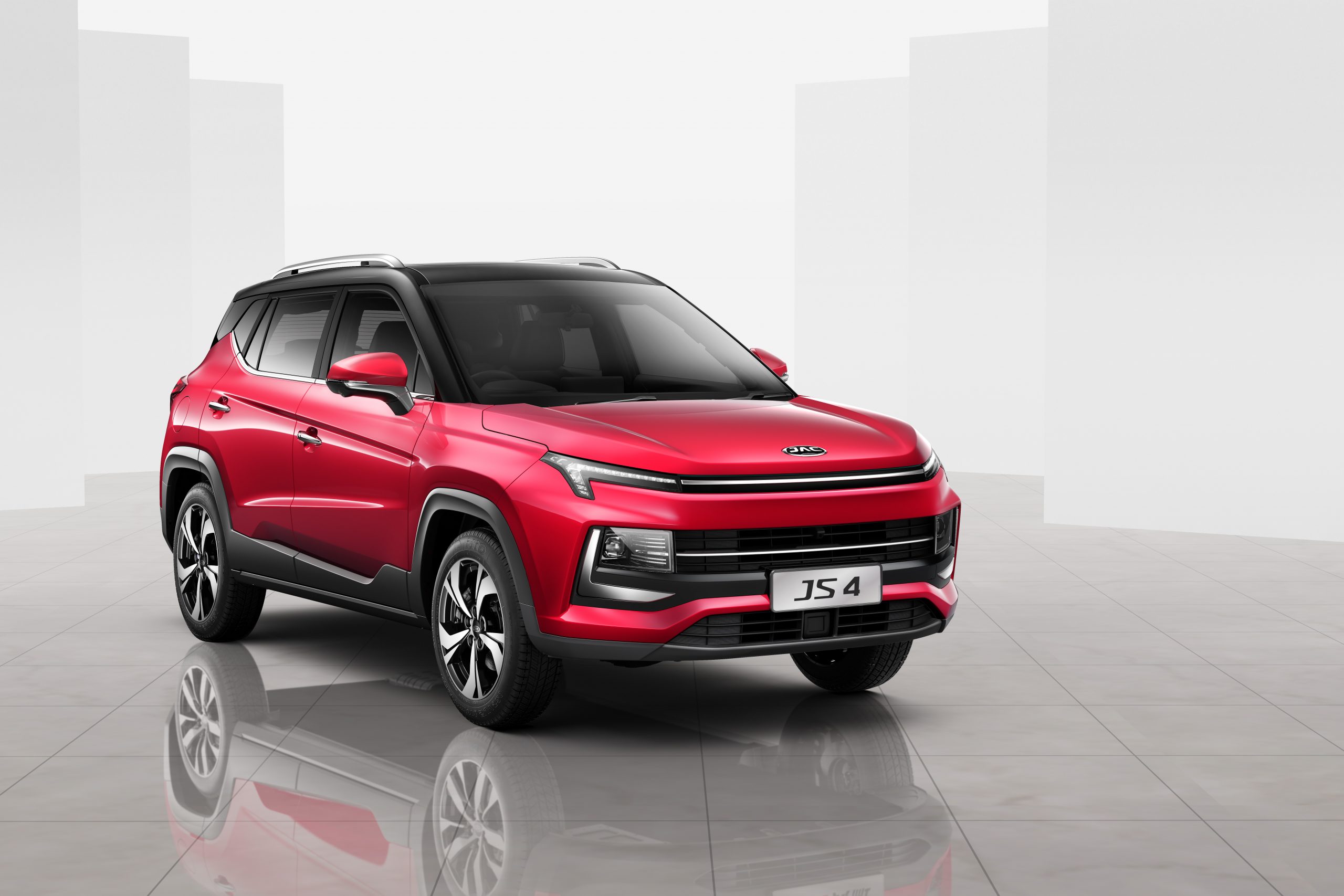

High-strength body

Simple, smooth and stylish, corresponds to the decoration below, full of technology and recognition.

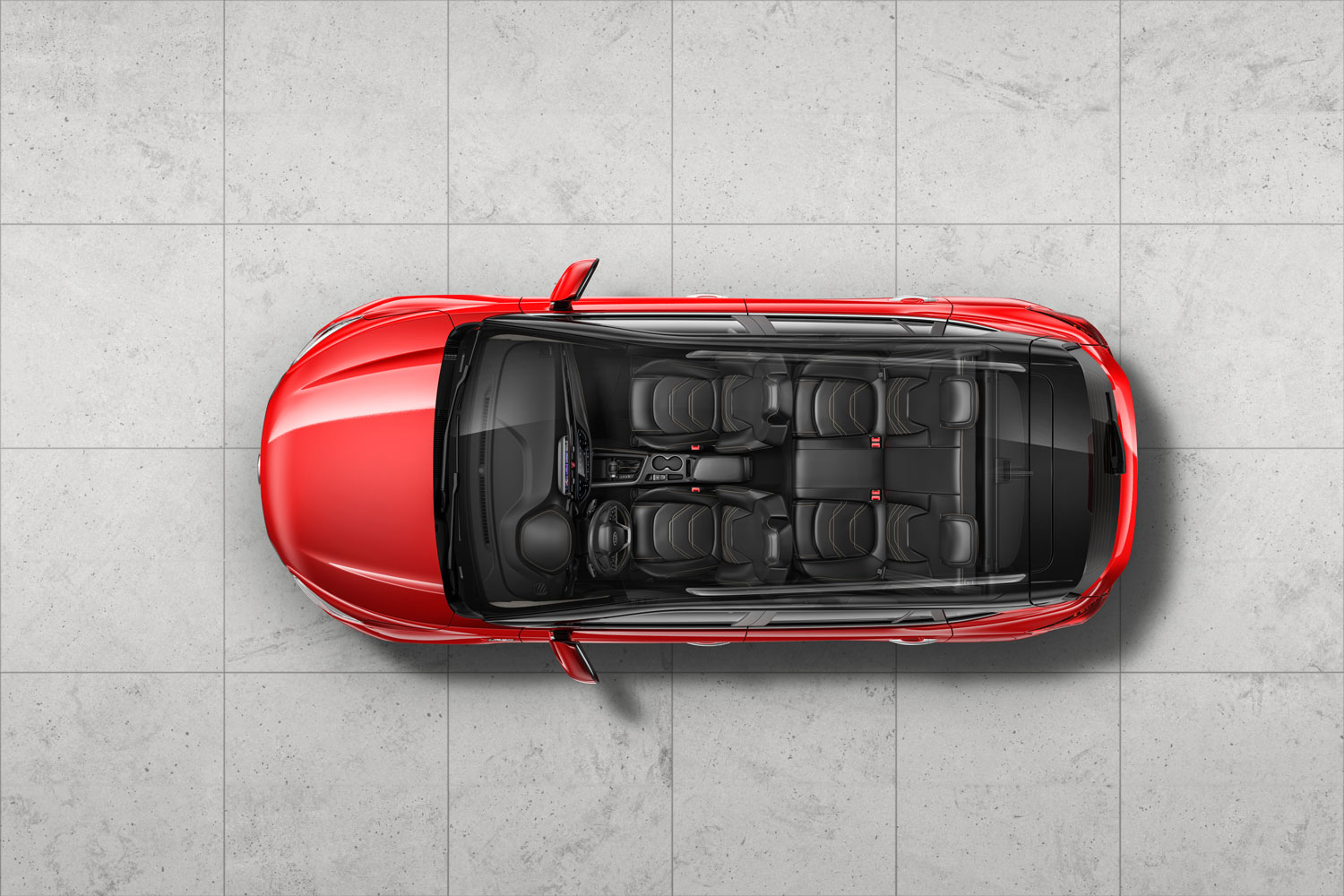

360° Panoramic image

360° view, 2D panorama, 3D panorama plus combined display, etc. through 4 cameras and controllers arranged in front, back, left and right.

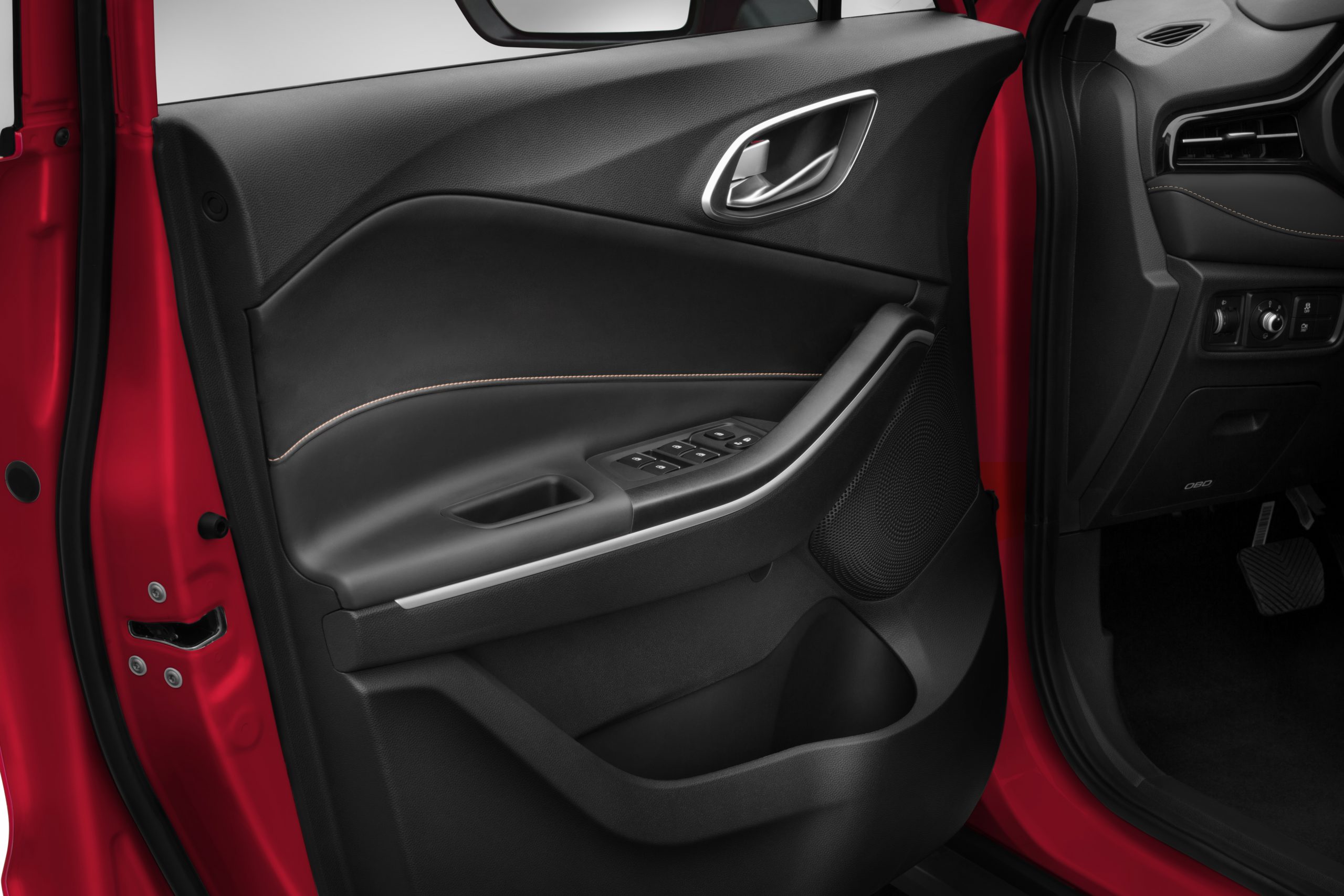

Intense Interior

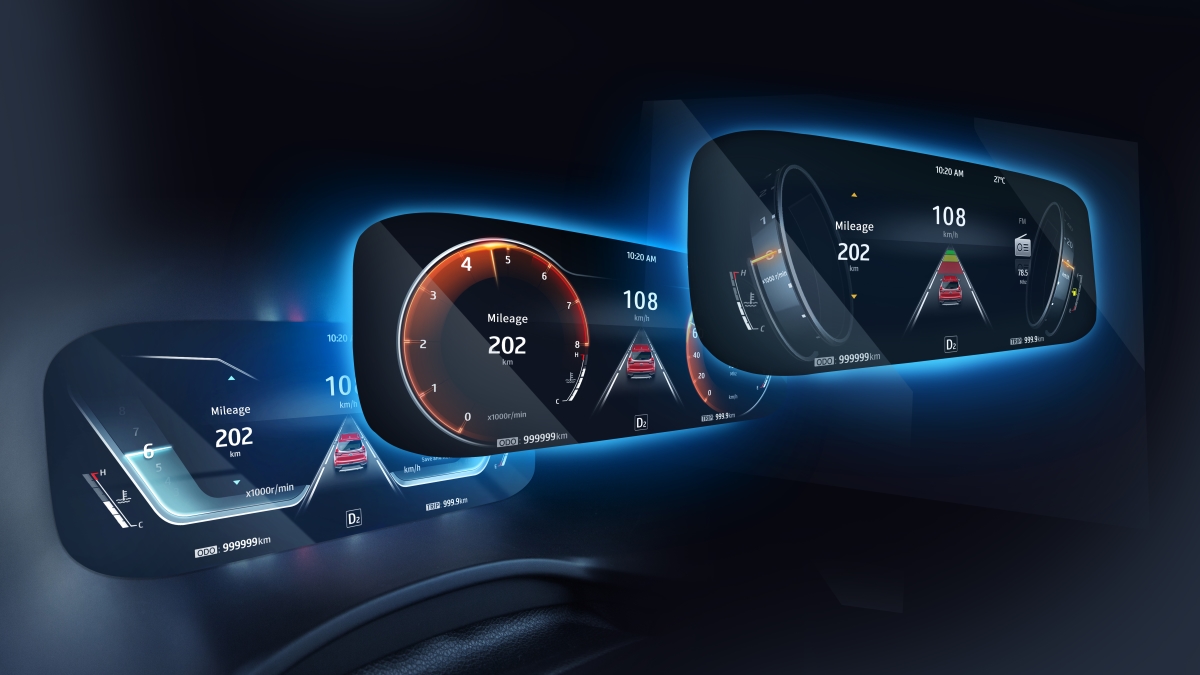

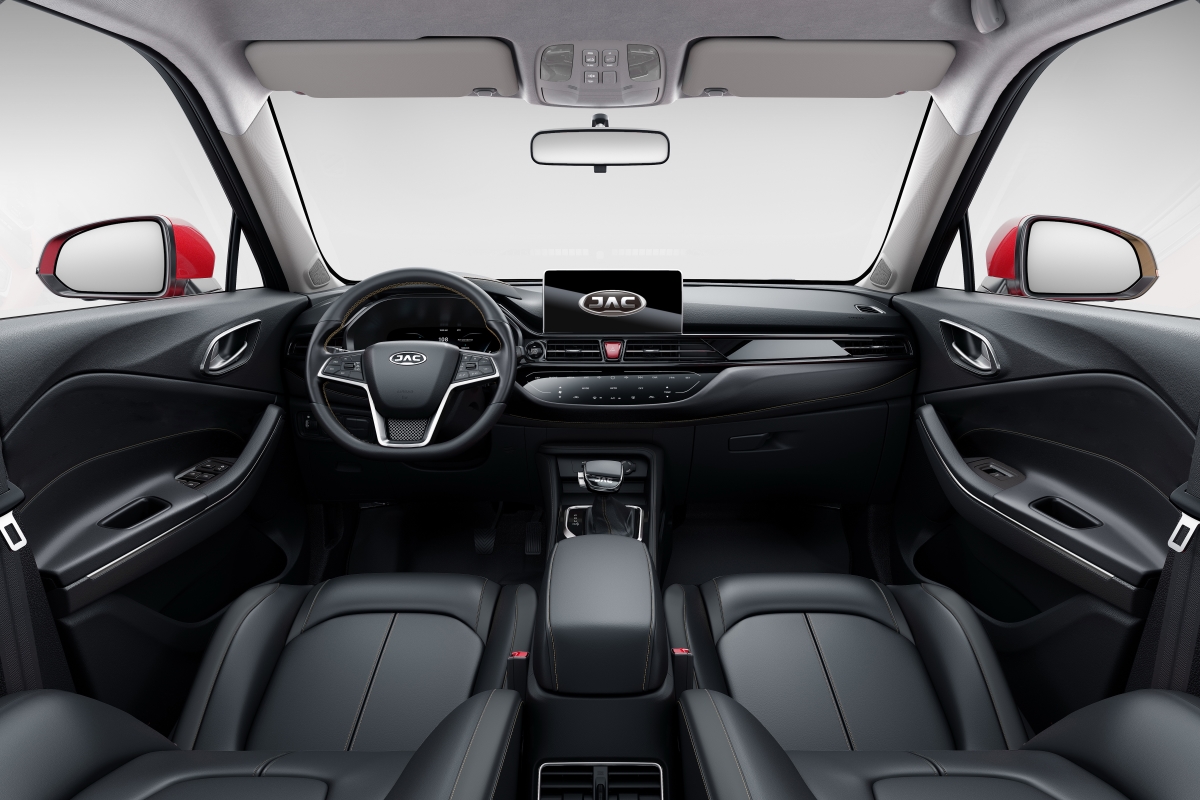

The new JAC JS4 is designed to make the life of the driver more comfortable and entertaining, but also safer, since it has technological attributes of a higher level that allow a safe and firm ride, full LCD combination instrument10.25 inch.

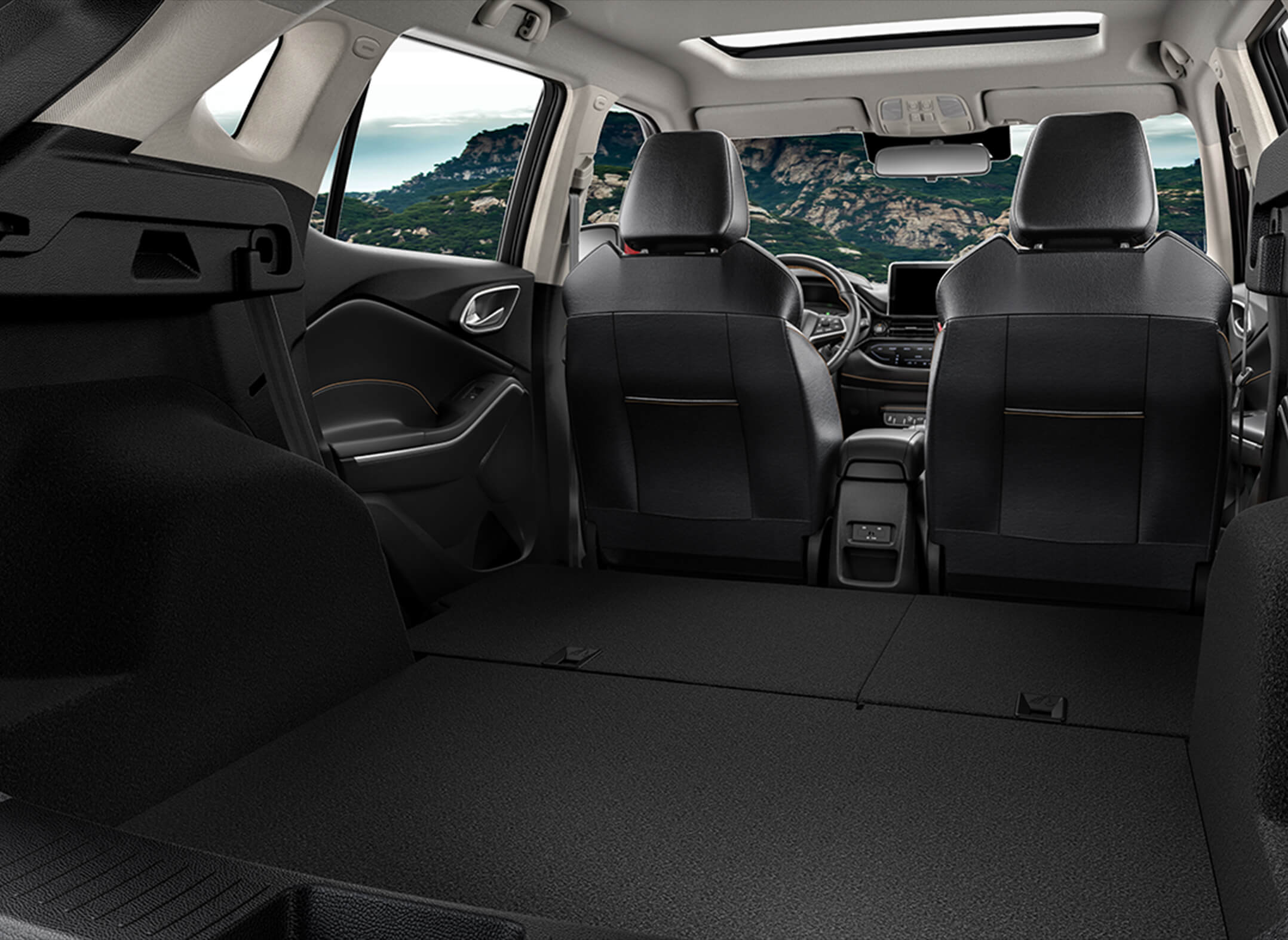

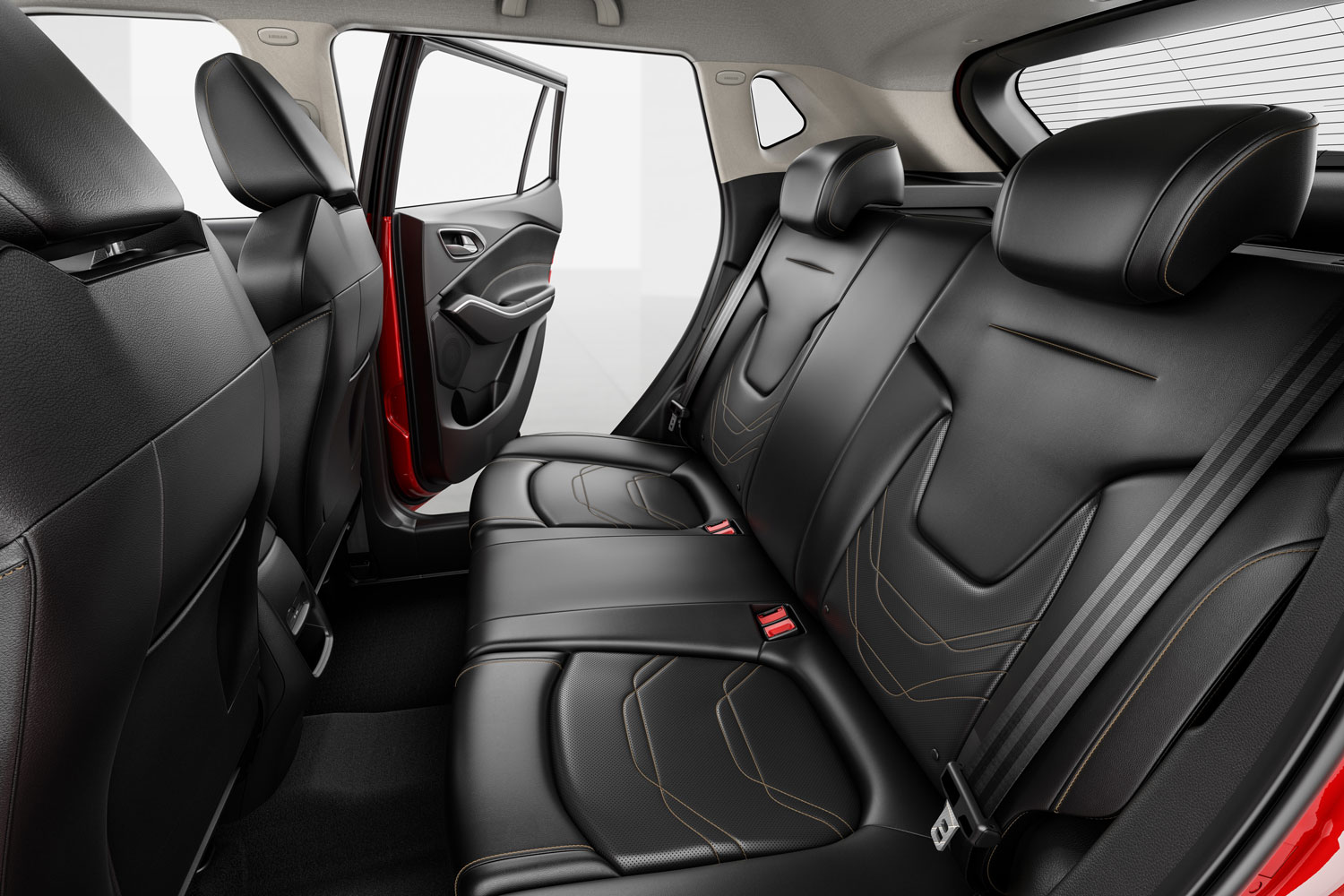

Interior Features

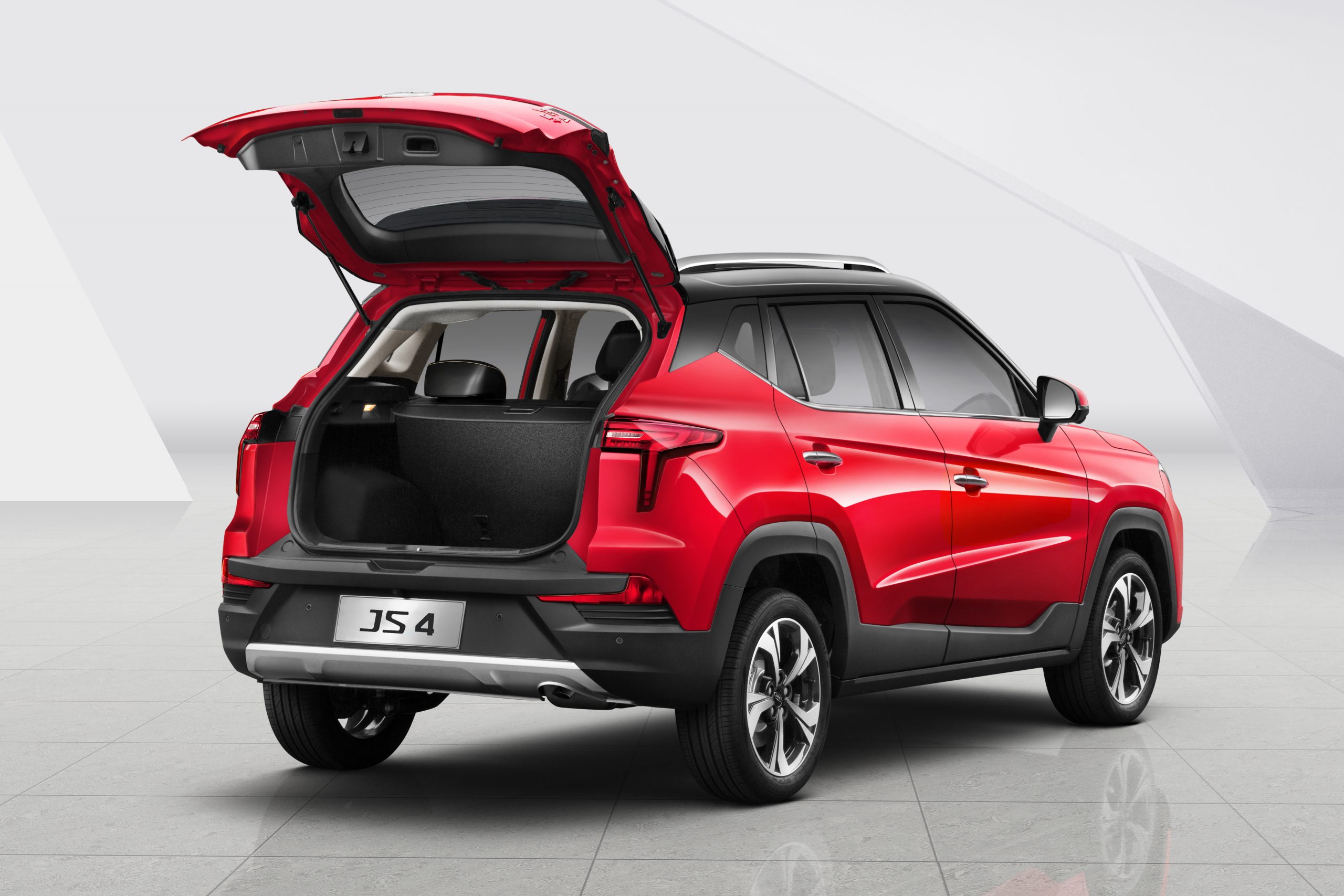

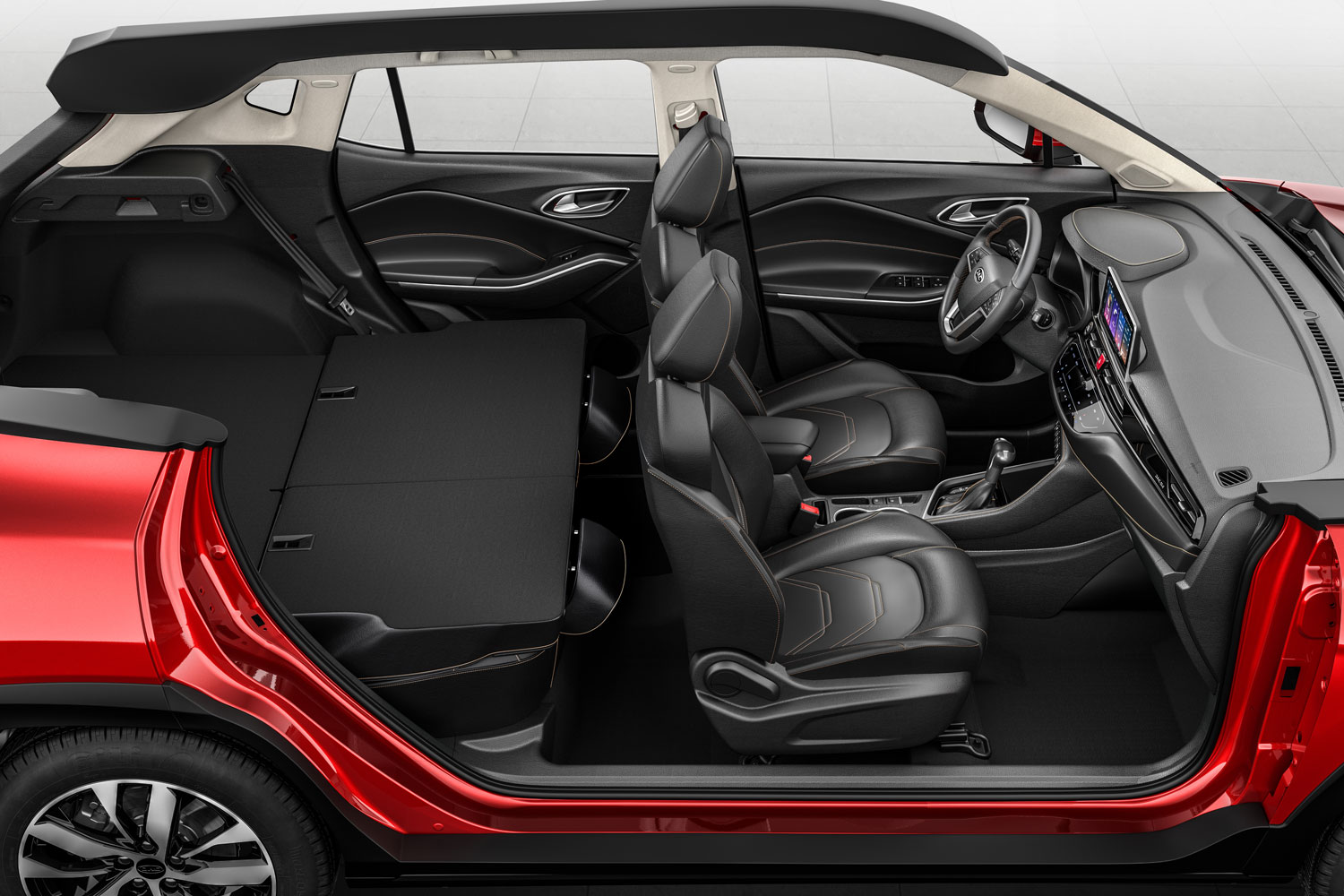

Second row of seats supports 4/6 all down, flexible storage and large space, increase the Trunk capacity to 520-1050 liters.
SPECIFICATIONS

JAC JS4

Vehicle model
Intelligent Version / Comfort Version
Engine technology
Turbo&i-VVT
Engine Model
JS4 1.5T+CVT
Dimensional Parameter
FEATURE Intelligent Version Comfort Version
Exterior Dimensions (L X W X H) (mm) 4410×1800×1660 4410×1800×1660
Wheelbase(mm) 2620 2620
Min ground clearence ≥150(full-load) ≥150(full-load)
Min turning radius （m） ≤5.6 ≤5.6
Approach angle（°） 17 17
Departure angle（°） 23 23
GVW (kg) 1800 1800
Curb weight (kg) 1365 1365
Seats 5 5
Trunk（L） 520-1050 520-1050
Fuel tank（L） 50 50
powertrain
FEATURE Intelligent Version Comfort Version
Displacement(cc) 1499 1499
Fuel type Gasoline Gasoline
Max horsepower (HP) 147 147
Max Torque ( NM ) 210 210
Emission EuroV EuroV
Max gradebility(%) ≥30 ≥30
Max Speed (Km/h) 170 170
Max power(kW) 110 110
Max power speed (rpm) 5500 5500
Max torque speed (rpm) 100 100
Net power(kW) 2000-4500 2000-4500
Transmission CVT CVT
Gear ratio 0.443-2.416 0.443-2.416
Main gear ratio 6.65 6.65
Chassis & Steering
FEATURE Intelligent Version Comfort Version
Front suspension Mac-pherson independent
Rear suspension Torsion beam semi-independent
Steering Electric power
Wheel & BRAKES
FEATURE Intelligent Version Comfort Version
Spare tire Original Size – 215/50 R17 Small Size – T125/80 R17
Brakes Disc
Tire size 215/50 R17
Tire/spare tire material Aluminium alloy rim/Steel
Exterior Equipment
FEATURE Intelligent Version Comfort Version

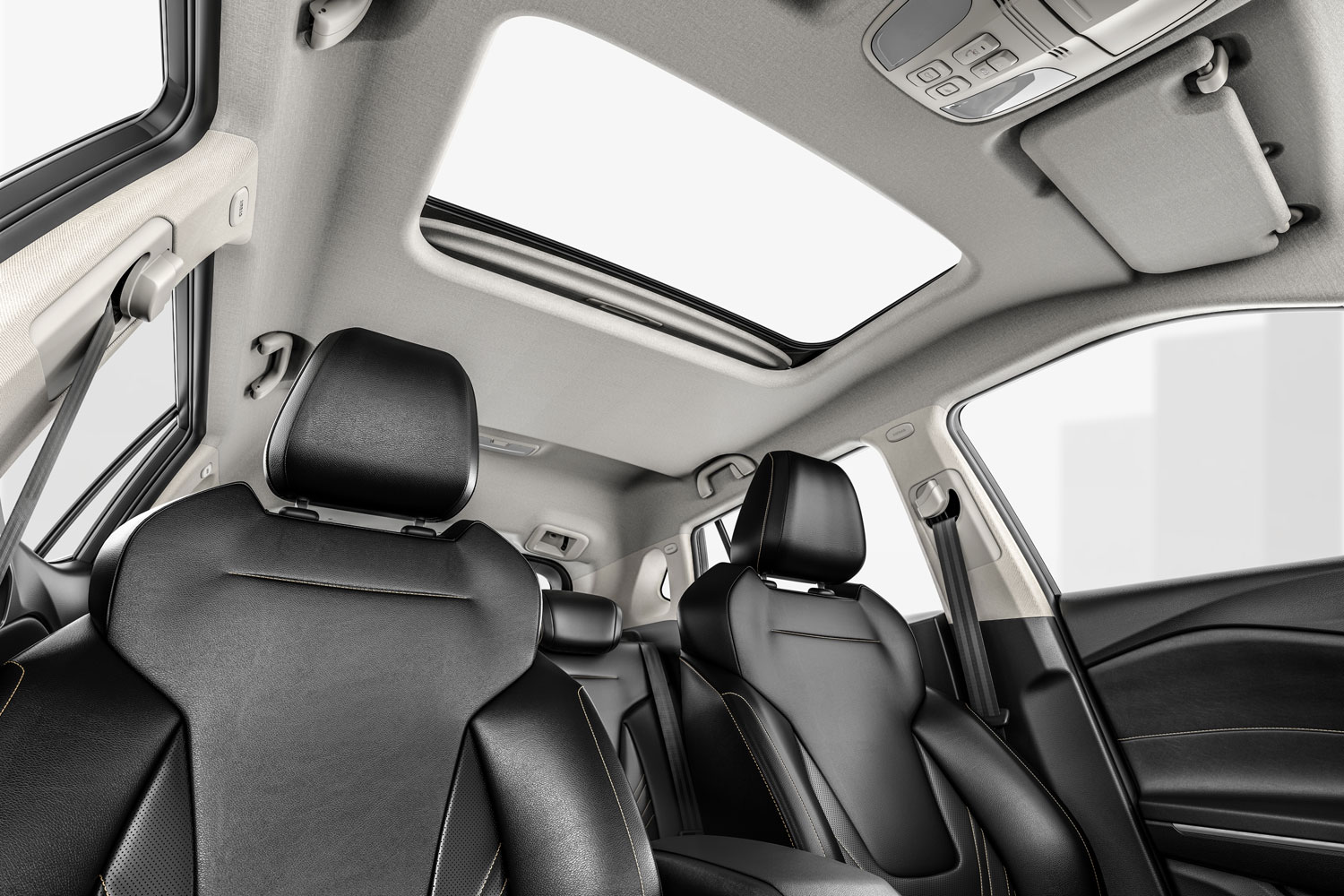

Sunroof Power sunroof –
Logo JAC Logo –
Roofrack Roofrack
Antenna Shark fin roof antenna
Wiper Rear wiper
Lighting Collocation
FEATURE Intelligent Version Comfort Version
Head Lamps LED head lamps Halogen lamps
running lamps Daytime running lamps
tail lamps LED tail lamps
Rear lamp Rear fog lamp
Headlamps height Headlamps height adjustable
Headlamps lightening Headlamps automatic lightening
functions Follow me home function
Glass & Rearview mirror
FEATURE Intelligent Version Comfort Version
windows Front/Rear power windows Front/Rear power windows
windows Remote control of opening/closing windows –
anti-clamp One button up&down for all windows+anti-clamp One button up&down for driver window+anti-clamp
Exterior mirror Exterior mirror calefaction –
Exterior mirror Exterior mirror automatic folding upon locking vehicle –
Exterior mirror Exterior mirror electric adjust
Interior equipment
FEATURE Intelligent Version Comfort Version
Multifunction steering wheel Artificial lether Foaming
Instrument Panel LED instrument panel（10.25 inch） –
Cover Trunk cover –

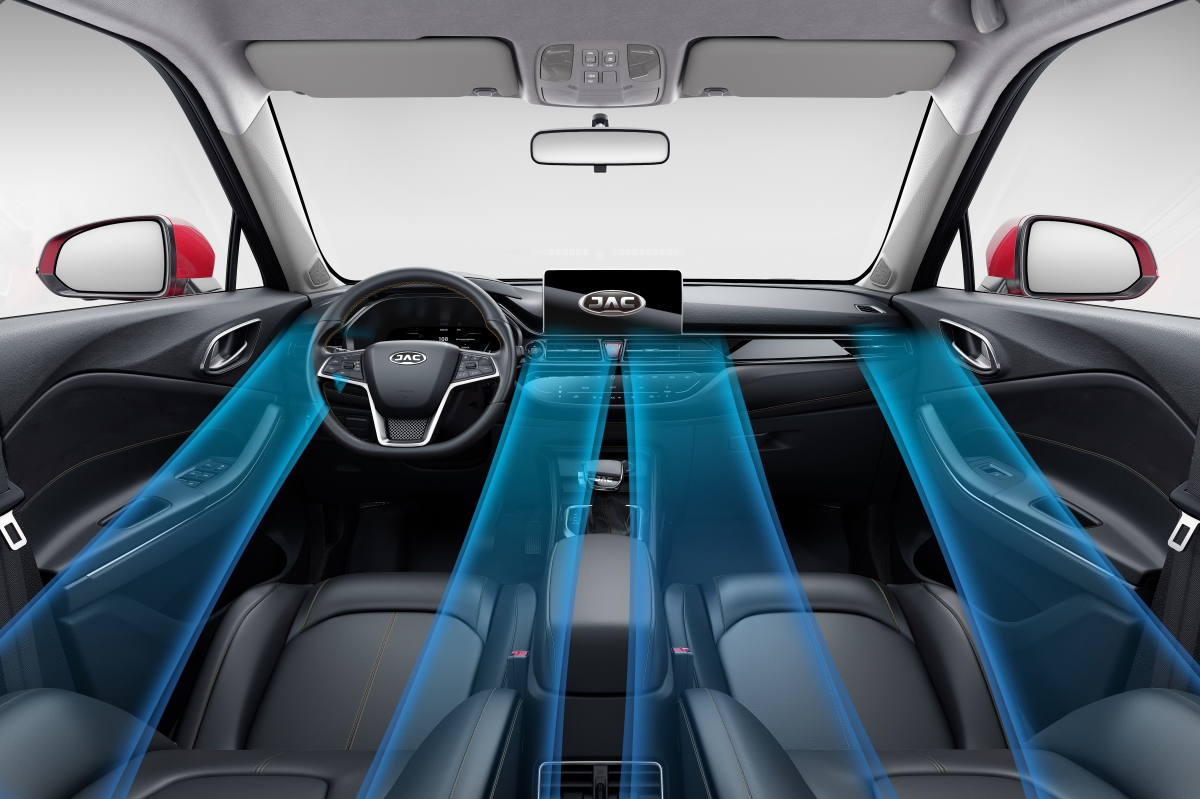

Air Conditioning Automatic air conditioning Manual air conditioning
Interior color Light Gray
Multifunction steering wheel Steering wheel up&down adjust
Trip Trip computer
Switch Instrument cluster dimmer switch

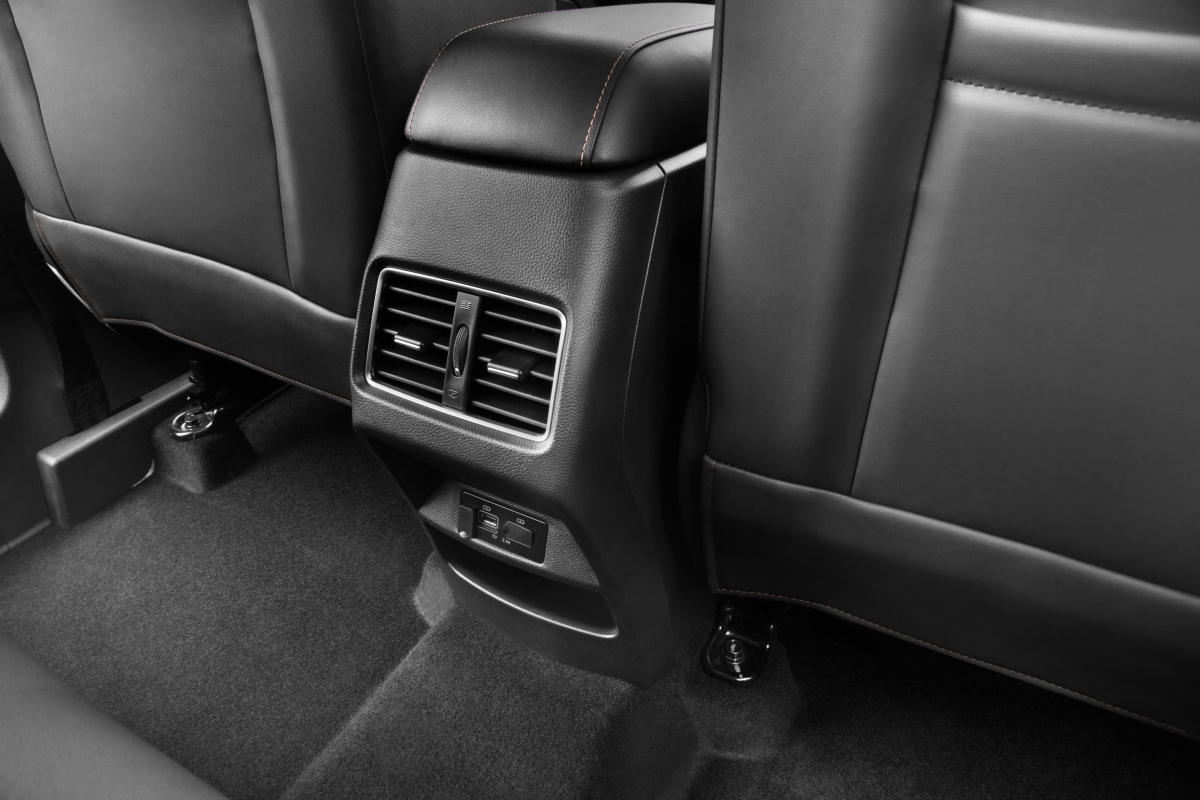

AC Outlets Rear air outlets
Interior equipment
FEATURE Intelligent Version Comfort Version
Seat Electric driver seat Manual driver seat
Seat material Artifical leather
Seat Manual co-driver seat
Seat Rear seats central headrest
Second row seats way of folding 4/6
Front central armrest Standard Equipment
Rear central armrest Standard Equipment

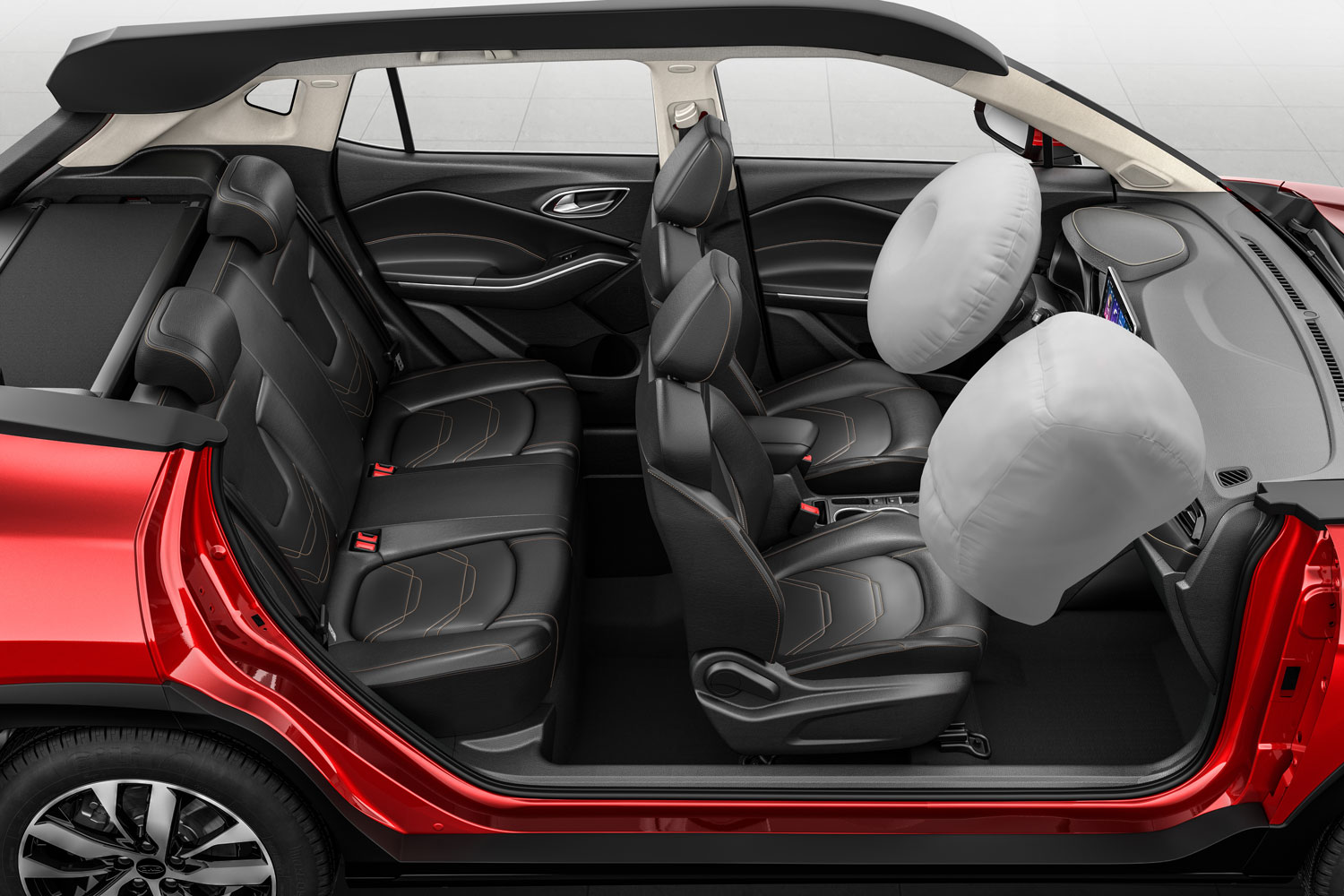

Driver airbag Standard Equipment
Co-driver airbag Standard Equipment
Front seats side airbags Standard Equipment
Rear middle seat with three point safety belt Standard Equipment
Front seat belt height adjustable Standard Equipment
Driver seat belt alarm system Standard Equipment
Co-driver seat belt alarm system Standard Equipment
Safety Equipments
FEATURE Intelligent Version Comfort Version
Camera Reversing video images & 360º Panoramic images –
Child seat ISOFIX (Child seat connector)
TPMS TPMS-Tire pressure monitoring system
Immobilizer IMMO (Engine immobilizer)
Key Remote key
ABS + EBD ABS-Antiblock Braking System+EBD-Electronic Brake force Distribution
ESC ESC-Electronic Stability Control
HBA HBA-Hydraulic Brake Assist
HAC HAC-Hill start Assist Control
BOS Brake Override system (BOS)
Sensor Rear parking sensors
Alarm Over-speed alarm
Multimedia configuration
FEATURE Intelligent Version Comfort Version
Music MP5（Default interface： English） –
Smart phone link Carplay+Android Auto –
Radio Radio
Phone Connect Bluetooth phone
USB (Front) USB
USB for rear passengers 2
Speakers 6
High Technology collocation
FEATURE Intelligent Version Comfort Version
PEPS PEPS –
Brake Electrical parking brake
Hold AUTO HOLD
System CCS-Cruise control system
