Overview

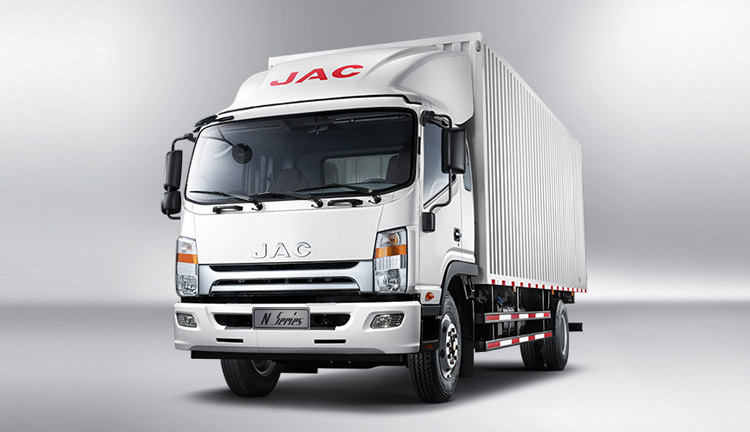

N-Series

The leading international high-end truck design concept of rigidity, mobility and cleanliness. Adopting design elements such as small angles of inclination and straight lines. Fully using the domestic and international development resources, bringing in advanced designing conception and learning foreign advanced technologies, JAC high-end light-duty truck is suitable for various road conditions.
DESIGN
  • ABOUT

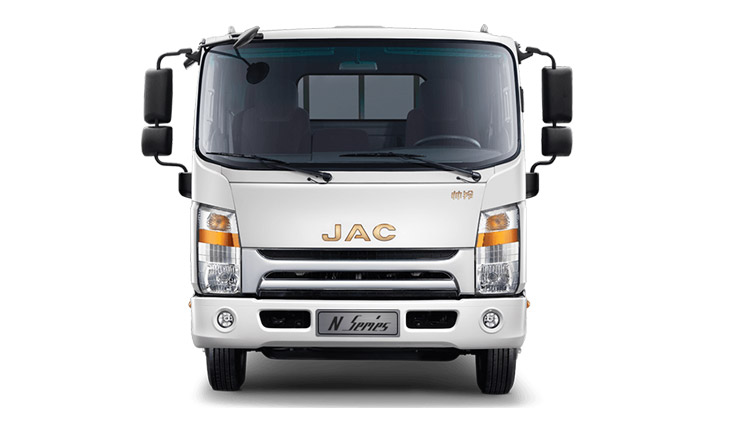

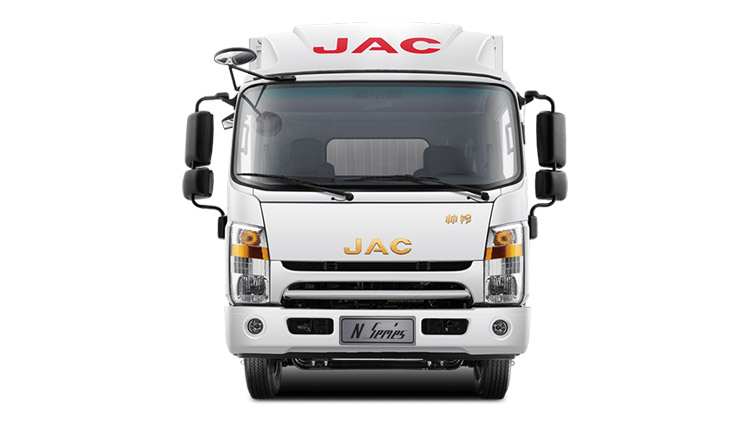

  • EXTERIOR

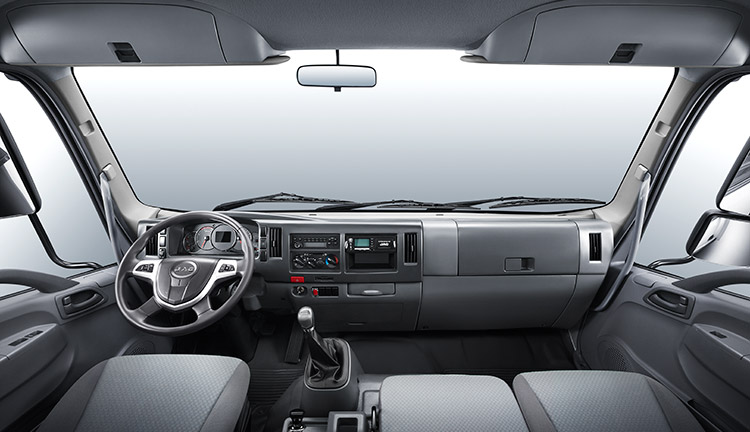

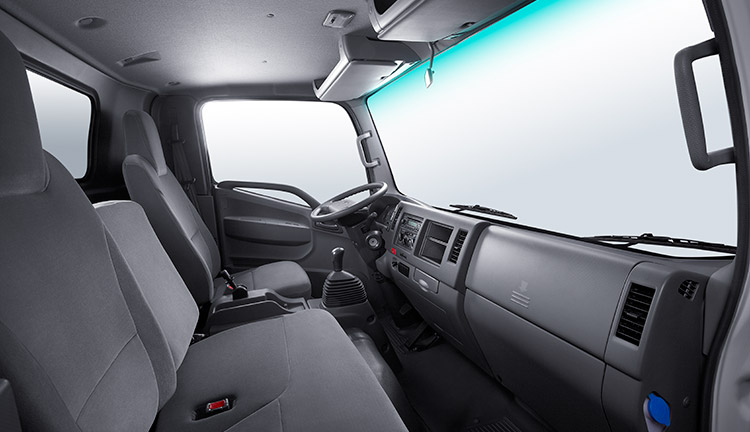

  • INTERIOR
  • GALLERY

Engineering & design in synergy

Loading Ability

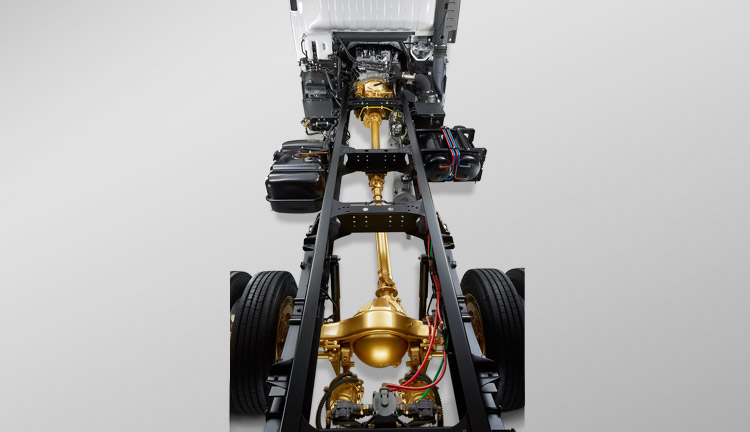

One-time press-forming by 6000 ton pressing machine, matched with large-ton front and rear axles and reinforced longitudinal beam have realized superior loading.

Modern Approach

Considering the trend of modern logistic intensity, high efficiency and intelligence, JAC N Series has supplied main line logistic version, branch line logistic version, micro line logistic version and end line logistic version.

Ever so Reliable

JAC N series trucks have passed 1,000,000Km reliability tests under the high temperature, high frigid, high humidity and high altitude condition.

Specialized Security

JAs the first light-duty truck which has passed the complete vehicle collision high-standard test in China, JAC N Series was equipped with security equipment such as ABS, auxiliary braking, air brake, frame side mirror, etc. JAC N Series fully protect your safety driving

Economic



Fuel Consumption

JAC N Series has covered 2.7L，3.8L and 4.5L light-duty truck full-power range covering featuring high torque under low speed. This feature keeps the engine working fully within fuel economic fuel consumption zone for a long time.

Operation

Updated transmission and an international gear layout make it easy to shift gears.

Optimized Streering

An optimized steering system can reduce power drain and increase stability while running at different speeds.
SPECIFICATIONS

N-Series

Vehicle model
JAC DOUBLE CABIN TRUCK / JAC SINGLE CABIN TRUCK
Type
Common Rail
Engine Model
HFC4DA1-2B1 / HFC4DE1-1B
Dimensional Parameter
FEATUREDOUBLE CABIN TRUCKSINGLE CABIN TRUCKCurb weight (kg) ）26802960
Exterior Dimensions (L X W X H) (mm) 6045*1908*2310 6039*2170*2364
Wheelbase(mm) 3360 3308
Min ground clearence 205 174
Approach angle（°） 14 14
Front Tread (mm) 1440 1685
Rear Tread (mm 1425 1650

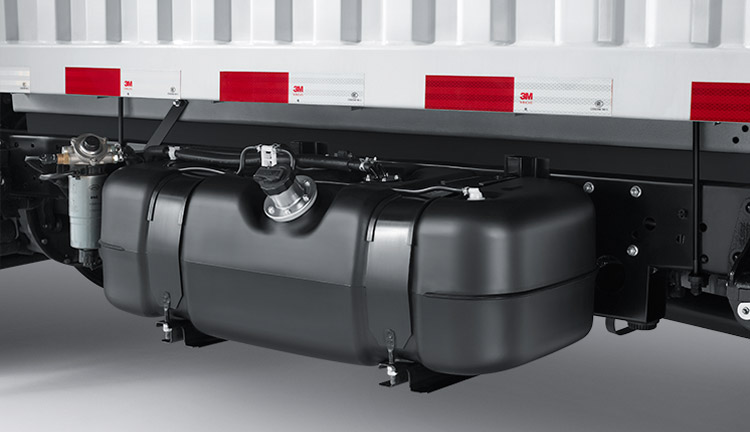

Fuel tank（L） 100 100
Payload Capacity (Kg) 2820 3540
powertrain
FEATUREDouble Cabin TruckSingle Cabin Truck
Displacement(cc) 2771 2746
Max Output (HP/RPM) 90.72/3, 600 150/3, 600
Max Torque ( NM /RPM) 355/1800-2600 355/1800-2600
Emission III III
Max gradebility(%) 30 30
Max Speed (Km/h) 115 115
Min Turning Radius (m) 7 7
Chassis & Steering
FEATUREDouble Cabin TruckSingle Cabin Truck
Front suspension Leaf Spring
Type 5 Speed manual gear 6 Speed manual gear
Wheel & BRAKES
FEATUREDouble Cabin TruckSingle Cabin Truck
Brakes Hydraulic Brake
Wheel 6

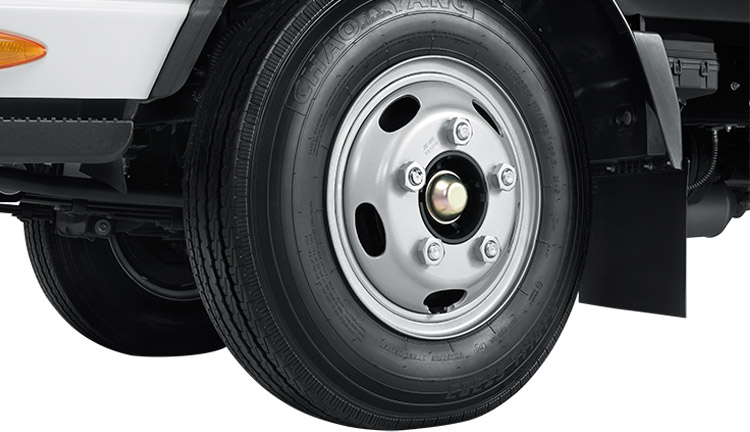

Rear Tires 7.00R16 12PR 7.50R16 14PR
Exterior Equipment
FEATUREDouble Cabin TruckSingle Cabin Truck
Door anti collision bar Standard Equipment
Heavy duty rear suspension Standard Equipment
Auto distribution brake Standard Equipment
Exhause Braking Standard Equipment
Anti-lock Brakeing System Standard Equipment
Mechanical sliding door Standard Equipment
Three sides cargo box Standard Equipment
Horn Standard Equipment
Tool box Standard Equipment
Others
FEATUREDouble Cabin TruckSingle Cabin Truck

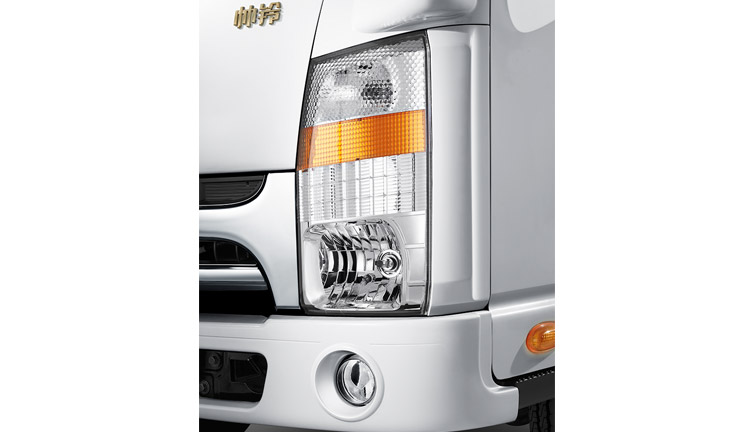

Head lamp electric adjust
Front fog lamp Standard Equipment
Front wiper Standard Equipment

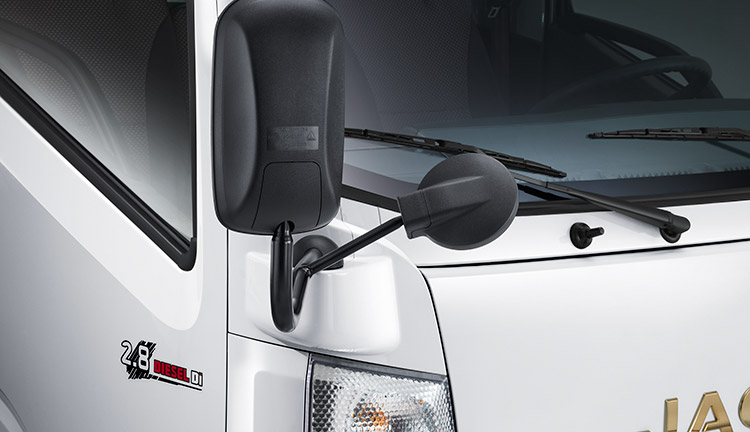

Mirror Manual adjust
Power Window one touch Standard Equipment
Bass Speaker Standard Equipment
Map Pocket Standard Equipment
Cup Holder Standard Equipment
Door step Reflector Standard Equipment
Wheel Trim Standard Equipment

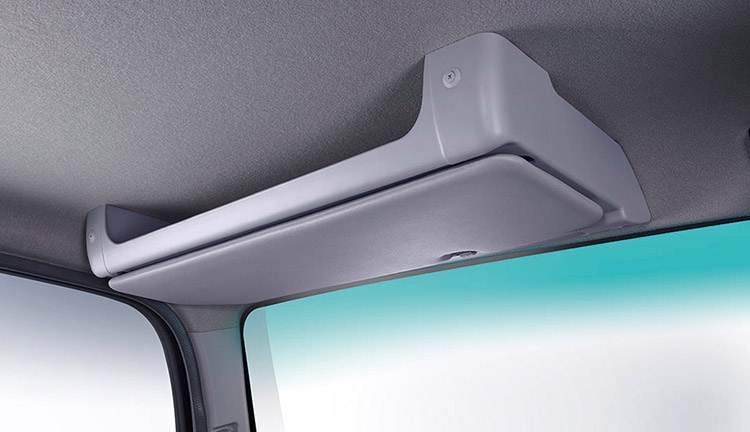

Over head console Standard Equipment
Sunvisor passenger side Standard Equipment
Assist Grip Standard Equipment
Sunglass Case Standard Equipment
Remote key Standard Equipment
Electric system Auto lock

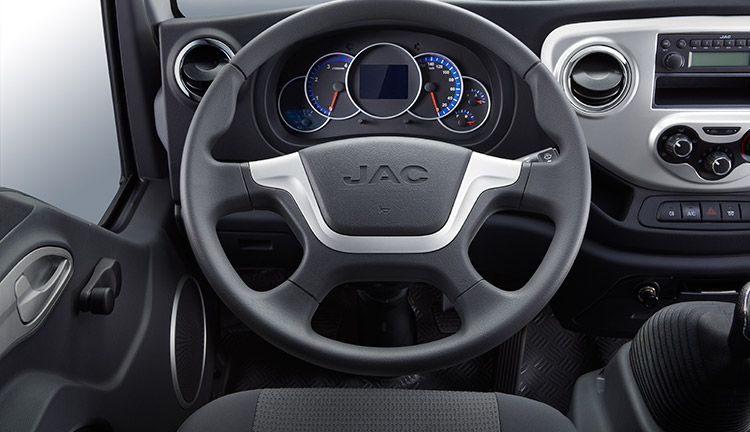

Steering Recirculating ball-type power steering
Cab Wide W1 (mm)r 1725 1995
Chassis Weight 2335 2485
Reverse Alarm Standard Equipment

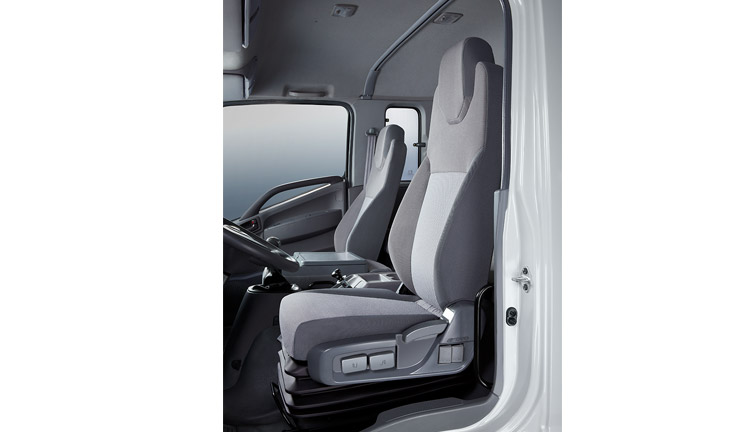

Seats Adjustable fabric Seats ( Forward and Backward )
Audio Radio+MP3+USB+AUX
Air Conditioner Standard Equipment
Ceiling Overall Ceiling
Seats 5 3
CCS-Cruise control system – Standard Equipment
